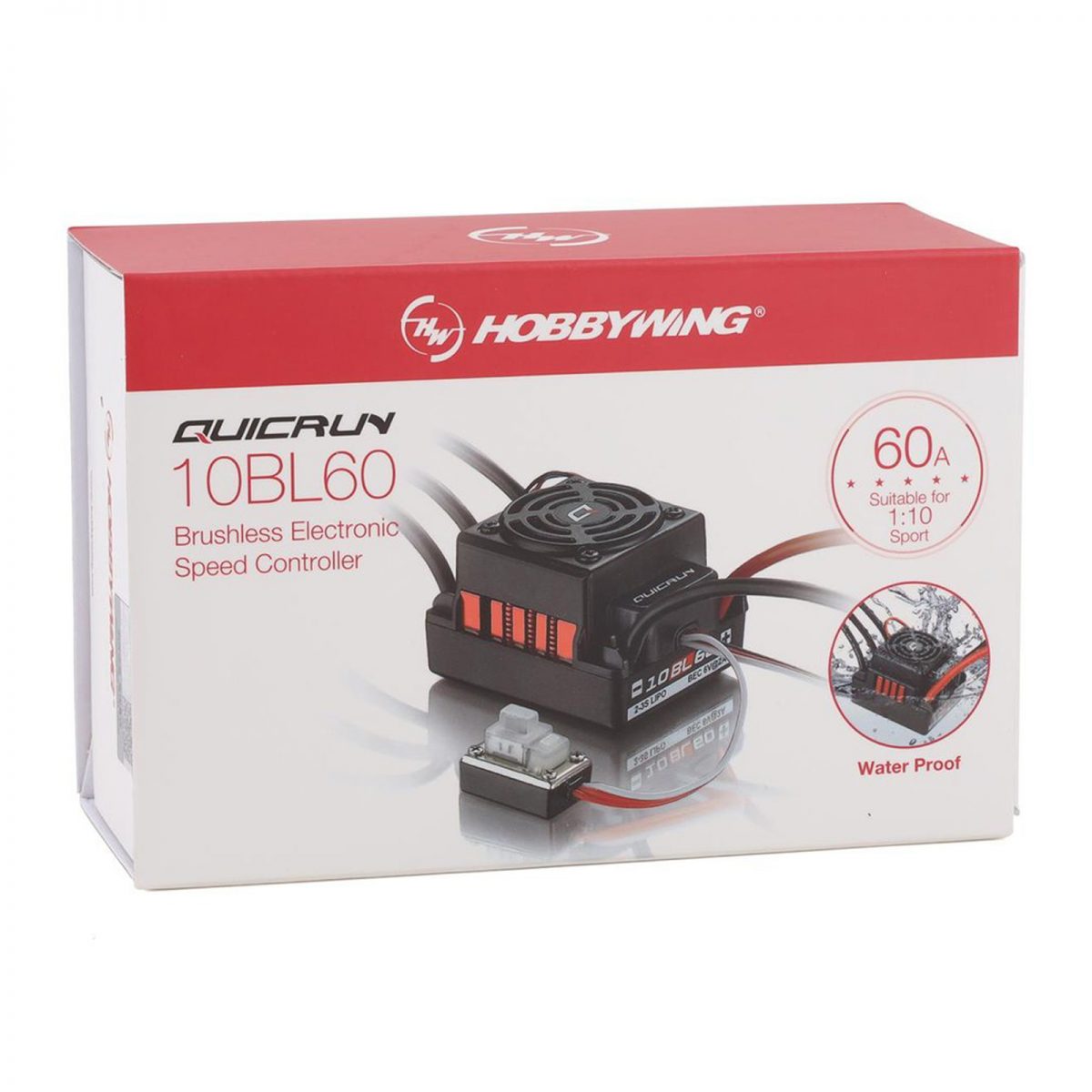

Hobbywing QuicRun WP-10BL60 60A Brushless WaterProof ESC for 1/10

Feature:

• For: 1:10 On-road / Off-road / Buggy / Monster
• Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
• Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
• 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
• Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
• One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
• Compatible with the optional device —- the portable Digital LED Program Card, especially convenient for outdoor use.

Specification:

• Model: QUICRUN-WP-10BL60
• Cont./Peak Current/ Resistance: 60A/360A/0.001Ω
• Motor Type Supported: Sensorless Brushless Motor
• Car Applicable: 1:10 On-road/Off-road/Buggy/Monster
• Motor Limit:
  • For 2S Lipo or 6 cells NiMH:
    • 1. On-road: 3656-size or smaller motor with the KV<6000
    • 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000
  • For 3S Lipo or 9 cells NiMH:
    • 1. On-road: 3656-size or smaller motor with the KV<4000
    • 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<300
• Battery: 4-9 Cells NiMH / 2-3S Lipo
• BEC Output: 6V/2A (Linear Mode)
• Size/ Weight: 48.5(L)*38(W)*32(H) / 90g
• External Program Port: Available
• Working voltage of Fan: From battery directly without regulating

Include:

• HobbyWing QuicRun 1/10 Brushless WaterProof 60A ESC (1 Set)
• Manual (1 pc)
