The Wheelbase of the WB535 version is 60 mm longer. This modification improved the directionally stability as well as further driving qualities significantly. In addition parts of the 4WD Monster models were assembled in order to make a conversion to a 4WD model possible with low efforts.
According to the large tires this model can be driven almost everywhere. The Zenoah 26 cm³ engine provides sufficient power. Driving fun as well as tremendous looks are the prime characteristics of these models.
Technical description:

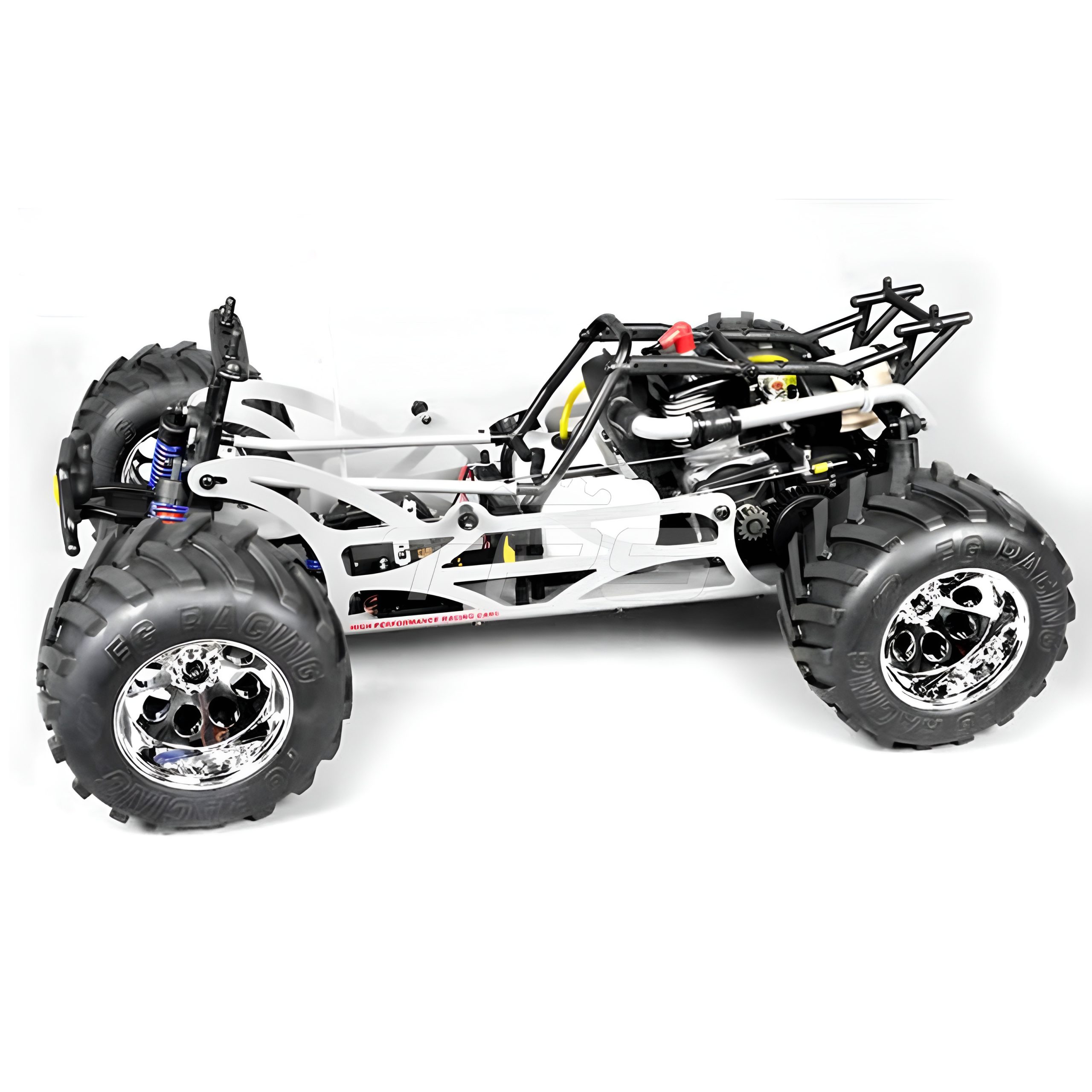

The undercarriage of the Monster models is built on a 4 mm angled alloy plate. All borings for fixation of the chassis parts at the bottom side are countersunk in order to prevent the screw heads from sticking out.
At the front axle you have the possibility to adjust toe-in or toe-out as well as the wheel camber through track rods with right-hand/left-hand thread.
The wheel camber of the rear wheels can be adjusted individually through adjusting screws with right-hand/left-hand thread. Four large-volume oil-pressure shock absorbers are mounted at the lower double wishbones of front and rear axle, these are able to absorb larger shocks of jumps to a great extent and care for an optimal road grip. All rotating drive components are supported by ball bearings.
Highly stressed steel parts such as rear gearwheels, differential gears and drive components are hardened. Fuel tank and radio control parts are protected through alloy plates at the sides. The body parts are made of coloured or respectively clear polycarbonate. The Monster tires with tire inserts are glued on chrome-plated rims.
The models are equipped with a powerful Zenoah 26 cm³ combustion engine with ready-for-use oiled air filter. The engine runs with normal 2-stroke petrol-oil mixture (available at every petrol station). The tank filling of 0.7 litres enables you to run your model around 45 minutes. With the installed pull-start system the engine can be started without any difficulties.
Dimensions:
- Length: 780 mm
- Width: 510 mm
- Height: 350 mm
- Wheelbase: 353 mm
What you need:
- Radio Transmitter
